CoolAVR is lightweight, full scale version on SCADA system developed for Digital Excitation Control System (Automatic Voltage Regulators). CoolAVR is monitoring and supervisiory system for generator's AVR. Software can run as stand-alone SCADA system or could be incorporated together with CoolPMS into one software package. Detailed information about Digital Excitation Systems can be
found on Basler Electric website.
Software Features
Engine/AVR monitoring up to 32 units
Real time historical Trends & Alarms
Logging data to SQL database
Daily backup of historical trends
Reporting capabilities, export to PDF
Statistical calculations of the plant
Embedded control logic
Client/Server mode up to 8 clients
OEM design for system integrators
Hardware Features
Touch screen or mouse control
Audible alarm signalisation
Embedded industrial PC - Touch
Resolution 1280x1024 or 1920x1080
Fulll HD television or monitor
Embedded industrial PC - Intel J1900
Ethernet RJ45, RS232, RS485
Modbus RTU and Modbus TCP
IP65 front panel protection
Screen size and resolution

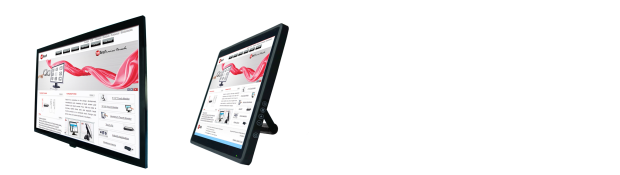

Panel hardware is available in six sizes: CoolHMI-55" - CoolHMI-42" - CoolHMI-32" - CoolHMI-22" - CoolHMI-19" and CoolHMI-17".
Connection topology
CoolPMS stationcan be connected to physical layers like RS485, RS422, RS232 and Ethernet. In pictures below are examples of possible communication options. Both topologies - Serial and Ethernet can be mixed together.
RS485 basic configuration

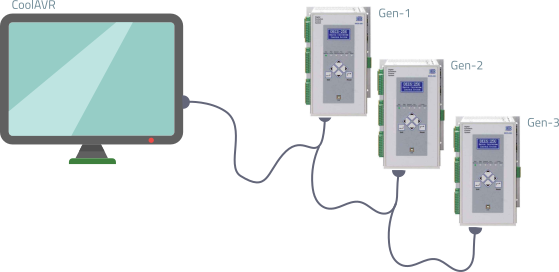

PC station is communicating with remote network nodes via RS485 multi-drop topology. Software layer is running Modbus RTU protocol. Optional Modbus RTU line is connected to external PLC for I/O monitoring. For detailed info about Modbus RTU please refer to datasheer of particular controller.
ETHERNET basic configuration

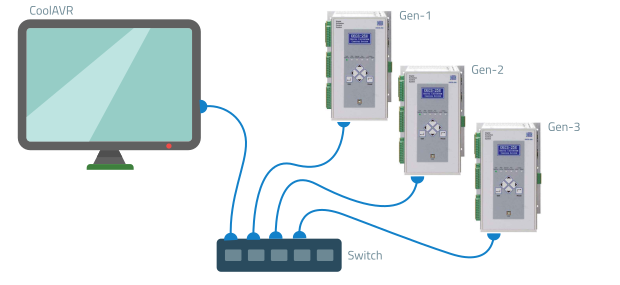

PC station is communicating with remote network nodes via Ethernet TCP/IP. Software layer is running Modbus TCP protocol. For detailed info about Modbus TCP infrastructure please refer to datasheer of particular controller.
ETHERNET multi device configuration

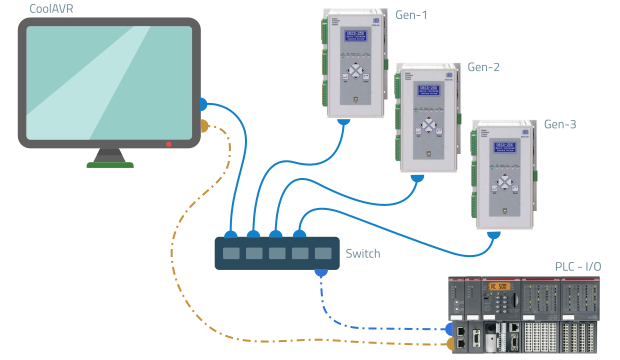

PC station is communicating with remote network nodes via Ethernet TCP/IP. Software layer is running Modbus TCP protocol. Optional Modbus TCP or Modbus RTU line is connected to external device for I/O monitoring. For detailed info about Modbus TCP infrastructure please refer to datasheer of particular controller.
ETHERNET multi station configuration

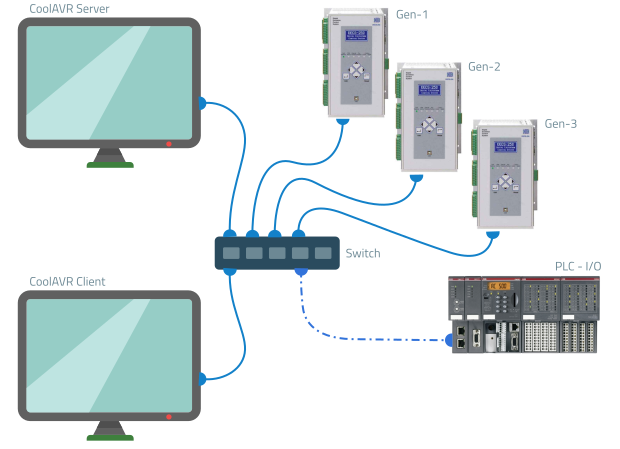

PC stations are in Client/server mode. Server is communicating with remote network nodes via Ethernet TCP/IP. Software layer is running Modbus TCP protocol. Optional Modbus TCP line is connected to external device for I/O monitoring. Client has access to data from Server and serves as another remote station. For detailed info about Modbus TCP infrastructure please refer to datasheer of particular controller.
